Production Page Settings (XML) Settings
According to the XML settings on a page, there may be differences such as fetching data, calculation, showing results on the page. XML Settings determines page-specific operating rules. It is set in the XML section under Page Settings.
Production Orders List Page
1 - Get Production Order No Links
It provides a link for all production orders in the list.
2 - Show Special Code
It allows the special code of the product to be displayed.
3 - Receive Production Orders Without Work Center
Lists production orders without work center as well as work centers for which the person is authorized.
4 - Get Links of Product Names
It provides links to the products in the list.
5 - Bring Production Order Stage Filter?
If Yes is selected, the production order stage filter is displayed.
6 - Bring Special Code Filter?
If Yes is selected, special code filter appears.
7 - Bring Work Center Filter?
If yes is selected, the Work Center filter will come. Listing can be made according to whether the Work Center is Full/Empty.
8 - Bring Sorting Filter?
If Yes is selected, sorting filter appears. In this way, filtering can be done as Ascending/Descending.
9 - Spec Filter Coming?
If yes is selected, spec filter will appear.
10 - Bring Related Production According to Order Status?
If Yes is selected, under the Related Production Order field, it ensures that the upper production order is not listed unless the production result is entered in the related production order or orders in a lower breakdown.

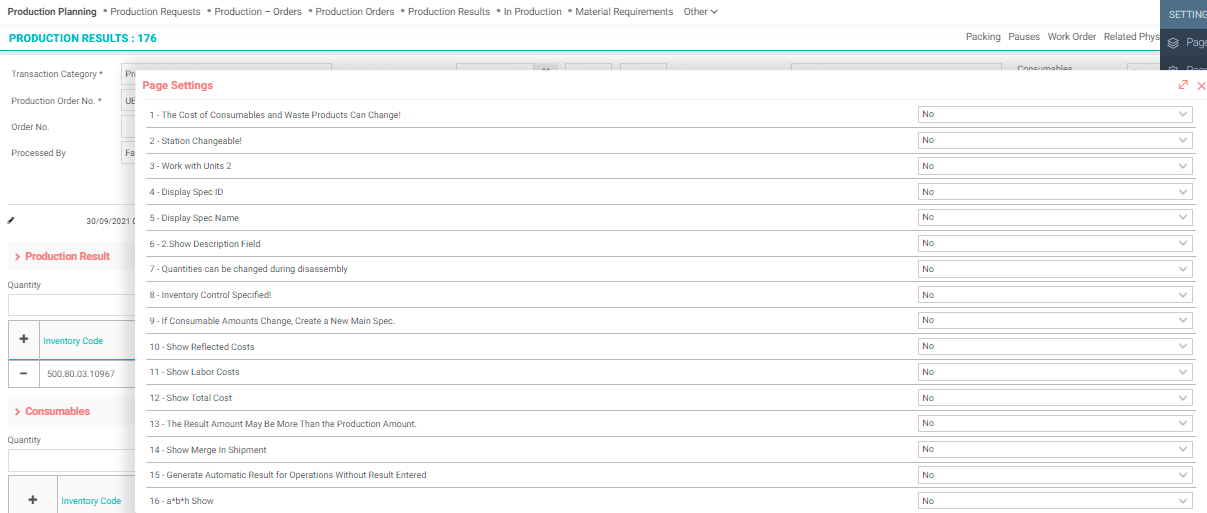

Production Result Detail XML Setup
When Yes is selected, the costs of consumables and waste material products can be changed manually.
2 - Work Center Changeable!
When Yes is selected, work center information of the production can be changed.
3 - Work with 2. Units
When Yes is selected, it will work with the 2nd units defined in the product detail.
4 - Display Spec ID
Spec ID is displayed when Yes is selected.
5 - Display Spec Name
Spec name is displayed when Yes is selected.
6 - Show 2. Explanation Field
When Yes is selected, the 2nd explanation field of the consumables and waste materials opens as an additional column.
7 - Quantities can be changed during disassembly
It allows the amount to be changed while disassembly operations are performed.
8 - Inventory Control Specified!
When Yes is selected, it controls not only the product's own inventory but also the relevant spec.
9 - Create New Main Spec if Consumable Amounts Change
Since operation information cannot be sent in operational bill of materials, new (duplicate) spec records will be created.
10 - Show Reflected Costs
It shows the cost reflected from the expense centers to the production result.
11 - Show Labor Costs
When Yes is selected, it shows the labor costs reflected from cost accounting.
12 - Show Total Cost
When Yes is selected, it shows the total cost of the product.
13 - The Result Amount May Be More Than the Production Amount.
The sum of the production results entered for a production order may be greater than the quantity in the production order.
14 - Show Combine at Shipping
Combine at Shipping boxes are displayed or not.
15 - Generate Automatic Result for Operations Without Result Entered
If yes is selected, if no results are entered for the operations related to the production order, the total amount of results is automatically entered to the work center to which the operation is connected.
16 - Display a*b*h
Either a*b*h is displayed or not.
17 - Add Product From Barcode and Serial No.
If Yes is selected, the product can be added by typing the barcode number or serial number for consumables and waste materials.
18 - Bring Barcode Column
If Yes is selected, it allows the barcode information to be displayed.
19 - Let the Waste Material Column Come for the Produced Product
In the produced product line, the waste material column is opened, and how many waste materials from the produced product can be written in this field.
20 - Unit Cost Based on System 2nd Currency
Costs are calculated according to the system 2nd currency.
21 - Consumables Lines Also Come as Waste Material
It also allows the consumable lines to come as waste material.
22 - No Update Can Be Performed If Receipt Has Been Formed
If Yes is selected, it does not allow the production result to be updated if the inventory receipt was created. In order to be able to update, inventory receipts must be deleted.
23 - Check Received Delivery Notes in Deletion Process
If yes, the production result will be deleted, and if there is a received delivery note, it will warn.
24 - Lot Number Can Be Changed
If Yes is selected, it allows lot number changes of the products.
25 - Look for Quality Control Information while Creating Inventory Receipt
This selection does not allow the creation of an inventory receipt without making a quality control entry for the product. In order to save the inventory receipt, it is necessary to make a quality control entry for the product produced as a result of the relevant production and to select the approval at the stage in the quality control process.
26 - Inventory Transaction Based on Lot No.
It allows inventory transaction to be made on the basis of the relevant Lot.
27 - Calculate Consumable Quantity According to Material Requirement
In cases where the quantity of consumable is not equal in the production order and result, when yes is said, it calculates the need based on the quantity of consumable used in the production result. When no is said, it assumes that the quantity of consumable in the production result has not been changed, and it brings the need. When Yes is selected, the consumable quantity in the production order is multiplied by the remaining production order amount and divided by the production order amount. E.g; 100 consumables were entered in product A in the production order. If 85 consumables are used while 80 consumables should be used in the amount of the production result, when yes is selected, the material requirement will be 15. If No is selected, the material requirement is 20 pieces.
28 - Consumable Receipt Transaction Category ID
Consumable receipt is created in the type of transaction whose ID is written. It is the value written in the process_cat_id field of the process type to be selected under Process Categories.
29 - Waste Material Receipt Transaction Category ID
A waste material receipt is created in the type of transaction whose ID is written. It is the value written in the process_cat_id field of the process type to be selected under Process Categories.
30 - Interwarehouse Transfer Transaction Category ID
In the transaction type whose ID is written, an interwarehouse transfer is created. It is the value written in the process_cat_id field of the process type to be selected under Process Categories.
31 - Output Receipt Transaction Category ID
In the type of transaction whose ID is written, a production output receipt is created. It is the value written in the process_cat_id field of the process type to be selected under Process Categories.
32 - Production Input Receipt (Disassembly) Transaction Category ID
In the type of transaction whose ID is written, a disassembly receipt is created. It is the value written in the process_cat_id field of the process type to be selected under Process Categories.
33 - Zero Inventory Control According to Document Date
If no is selected, zero inventory control is performed according to the inventory information of today's date in the conclusion of future productions. (For example; I have a production result of 50 for 1 month later. However, I do not have an inventory of semi-finished products today, and the production results for the semi-finished products are entered 1 month later. The system tells me that I do not have an inventory of semi-finished products based on today's date and does not allow me to finalize the production.) When Yes is selected, it is based on the inventory on the date of the document.
34 - Should Consumables and Waste Materials Arrive Based on the Sequence Number in the BOM?
When Yes is selected, consumable and waste material are shown according to the sequence number in the BOM.
35 - Show Manual Cost
Manual cost boxes are displayed or not.
36 - How Many Digits Should Come After Comma in Quantity?
In the Quantity field, the number of digits after the comma is selected.
37 - Automatically Update Consumable Quantity According to Production Result Amount?
If No is selected; The amount of the production result is updated only by pressing the button. Otherwise, it does not calculate the consumables. If Yes is selected, it will continue to work in its standard state. Automatic consumables are updated when the quantity changes.
38 - Input Warehouse Location Authorization
If all locations are selected, all locations can be selected regardless of authorization controls.
39 - Output Warehouse Location Authorization
If all locations are selected, all locations can be selected regardless of authorization controls.
40 - Production Warehouse Location Authorization
If all locations are selected, all locations can be selected regardless of authorization controls.

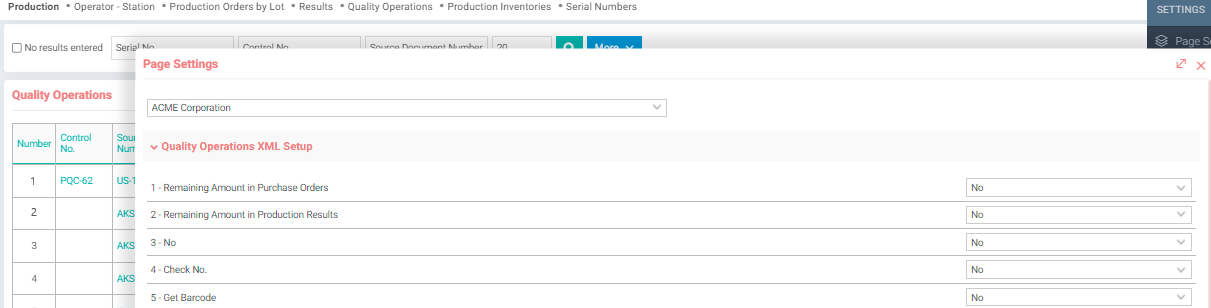

Quality Operations XML Setup
When the Purchase Delivery Note transaction type is selected, the Remaining Quantity appears in the list.
2 - Bring Remaining Quantity in Production Results
When the production result operation type is selected, the Remaining Quantity appears in the list.
3 - Bring No
When Yes is selected, the no column appears in the list.
4 - Bring Control No.
When Yes is selected, the control number column appears in the list.
5 - Bring Barcode
When Yes is selected, the barcode column appears in the list.
